1
Merchandising and use review
Confirm product loads, customer touchpoints, branding, lighting, security, accessibility, and store constraints.
Checkpoint
Functional and visual approval criteria agreed.
Quality System
ISO 9001
Manufacturing Lead Time
Quoted by Scope
500+
Projects Completed
25+
Countries Served
25+
Years Experience
Dongguan
China Factory
Certified Quality & Compliance
Fabex operates a quality management system certified to GB/T 19001-2016 / ISO 9001:2015.
ISO 9001:2015 Certified
GB/T 19001-2016 quality management system
Retail rollout production
Fixtures designed for approval, packout, installation, and repeat stores
A retail display is both a finished product and a rollout program, so appearance, assembly, logistics, and replacement planning matter together.
| Capability | Fabex scope | Engineering checkpoint |
|---|---|---|

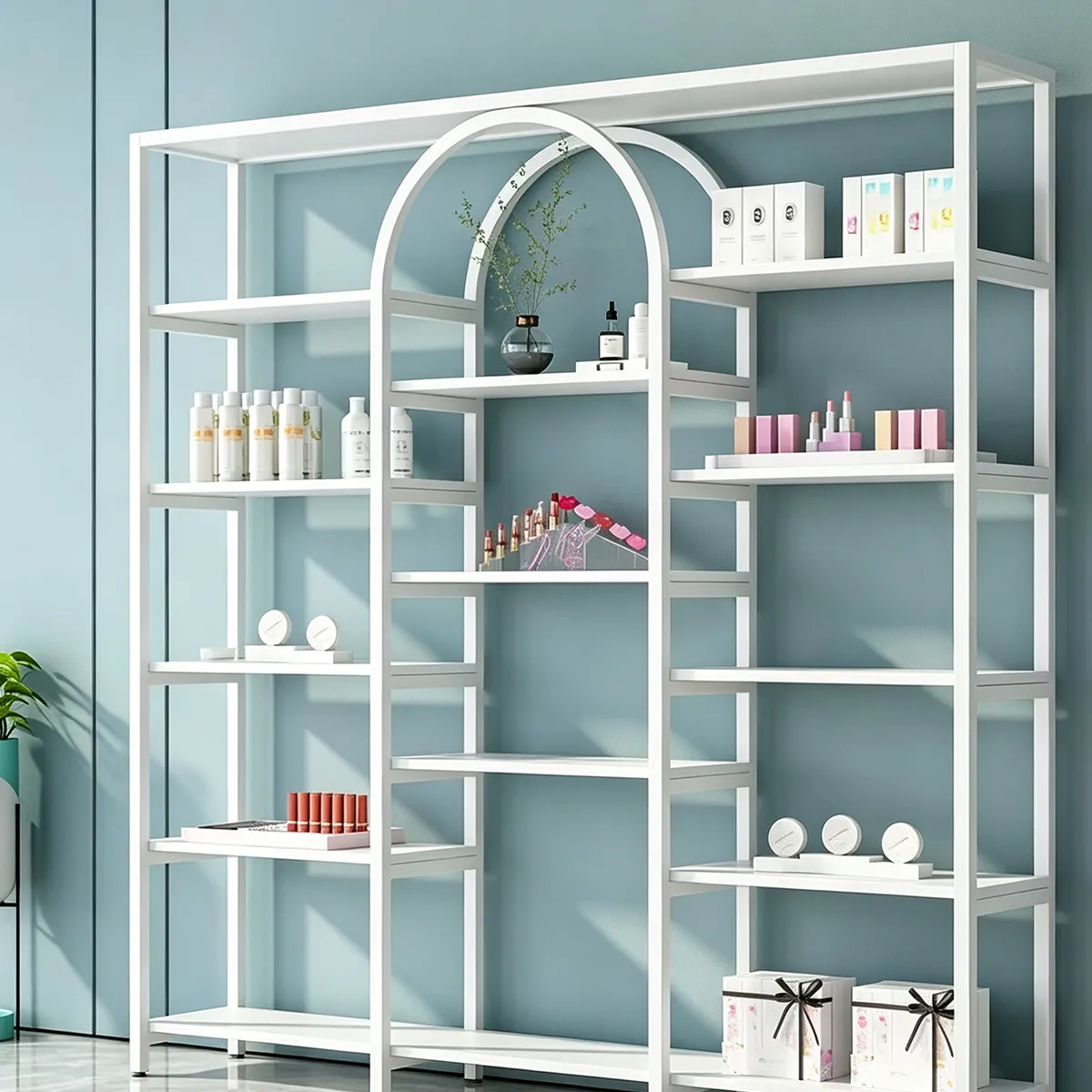

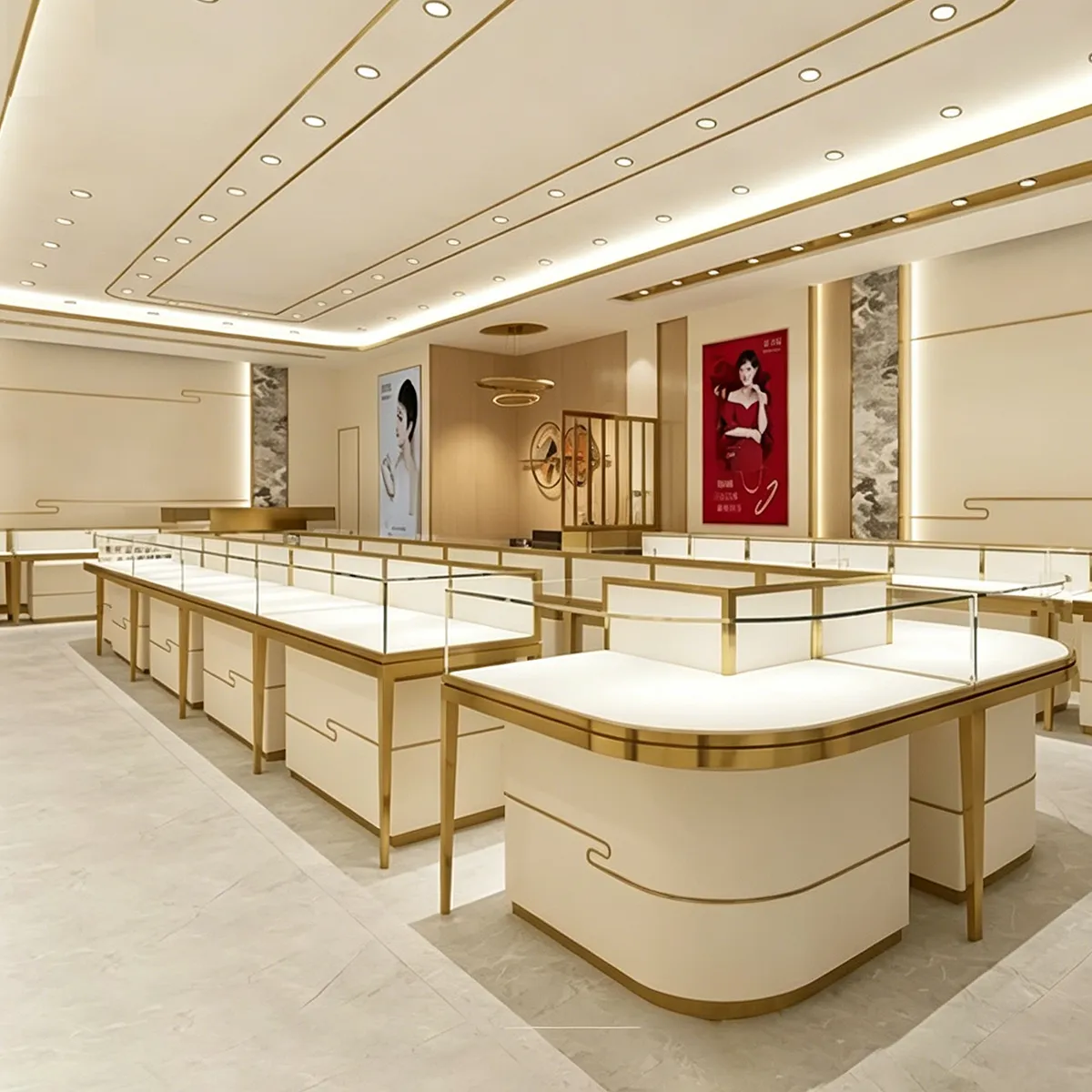

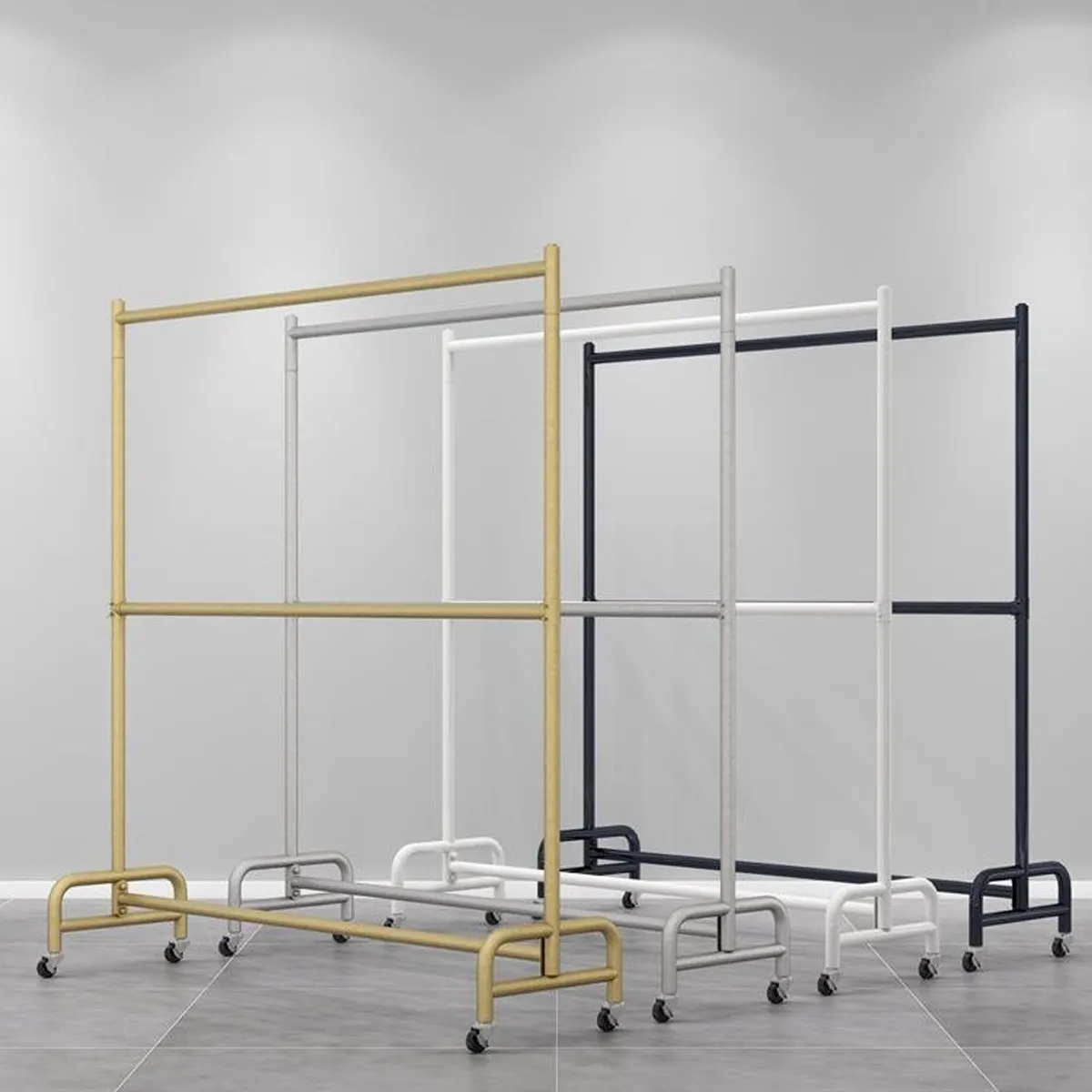

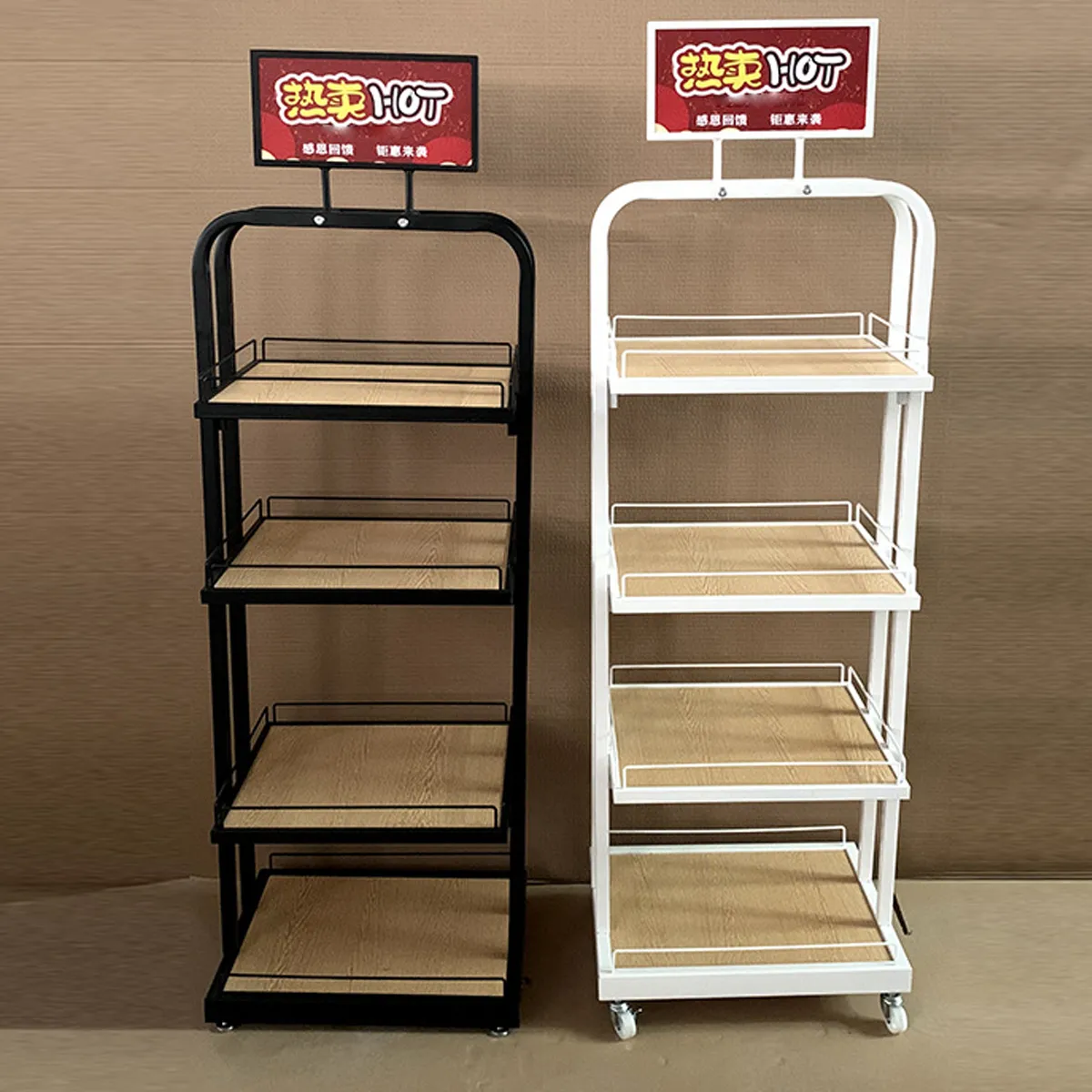

| Display formats | Floor stands, counter units, wall systems, shelving, cabinets, kiosks, and branded fixtures | The structure and packout route should match store handling and installation. |
| Materials and finishes | Metal, hardware, graphics, and mixed-material interfaces coordinated per design | Approved samples should define appearance across different materials. |
| Integration | Shelves, hooks, locks, casters, lighting provisions, graphics, and customer-specified hardware | Electrical or lighting scope and certification responsibility must be explicit. |
| Prototype approval | Fit, finish, merchandising, assembly, and packaging reviewed before rollout | Approval should cover the packed and assembled fixture, not only individual metal parts. |
| Rollout and replacements | Production and packout scheduled by store or deployment wave | Serialized or store-specific packs can reduce field sorting and installation errors. |
Not sure whether your part fits this capability?
Send your drawing, material, quantity, and delivery target. Our team will review the process route, manufacturability risks, and open questions before quotation.
Launch control
Approve the display as shoppers, installers, and logistics teams will see it
The production plan connects appearance approval with assembly time, packaging, store rollout, and replacement support.
2
Prototype and packout trial
Build the fixture, review finish and merchandising, test assembly, and validate packaging and instructions.
Checkpoint
Approved sample includes packed and assembled condition.
3
Wave production
Control color, hardware, graphics, fit, and pack contents against the approved display.
Checkpoint
Each shipment mapped to store, wave, or deployment requirement.
4
Launch and replenishment
Retain controlled replacement parts and respond to field feedback without changing approved interfaces.
Checkpoint
Spare and replacement strategy maintained through the rollout.
What changes your quoted cost
- Prototype and appearance approvals
- Mixed-material integration
- Lighting and hardware
- Knock-down versus welded construction
- Store-specific packout and rollout waves
- Finish durability and cosmetic standard
How we plan your project
Retail display rollout plan
See the commercial and engineering checkpoints Fabex uses to move this type of job from drawing review into controlled production.
Application
Drawing-defined sheet metal parts and assemblies
Material
Drawing-specified material and thickness
Quantity
Prototype through repeat production
Lead time
Confirmed after DFM and material review
Typical production challenge
A retail rollout may need appearance, merchandising, assembly, packaging, store waves, and replacement parts coordinated as one program.
Approach
Approve the complete prototype and packout, control production by rollout wave, and retain the replacement-part route.
What you receive before release
Documented DFM findings, a proposed manufacturing route, quotation, and lead-time plan for your approval.
Display questions
Retail display fabrication FAQs
Answers about prototypes, color, mixed materials, shipping, and rollout control.
Can a complete retail display be prototyped before rollout?+
Yes. The prototype should evaluate appearance, product loading, stability, hardware, graphics, assembly steps, packaging, and store constraints before volume release.
Can metal be integrated with acrylic, wood, lighting, or printed graphics?+
Yes when interfaces, supply responsibility, tolerances, fasteners, wiring provisions, finish protection, and certification scope are clearly assigned.
How is brand color controlled across a rollout?+
Use an agreed color and gloss standard, approved physical sample, substrate and pretreatment, controlled coating process, and defined acceptance method under consistent lighting.
Can fixtures ship flat-packed or knocked down?+
Many can, but joint stiffness, installer skill, fastener access, instructions, missing-part risk, packaging, and store assembly time should be evaluated against welded delivery.
How are replacement parts managed after launch?+
Define replaceable modules, part identification, finish revision, spare quantity, storage period, and ordering path during the original rollout planning.
How should display loading and stability be validated?+
Provide product loads, shelf positions, customer interaction, anchoring, floor condition, transport loads, and applicable retail requirements. Prototype testing should verify the complete installed display; fabrication alone does not establish structural or tip-over compliance.
Customer Perspective
Trust is earned in the next order
B2B customers often give brief, practical feedback and show their trust through the next project.
Selected customers
- Huawei
- vivo
Full production programs, repeat orders, and multi-year supply — not one-off samples. References available for your sector on request.
Trust shown through repeat work
In contract manufacturing, the clearest reward is often another drawing, another production order, or a larger scope.
Confidential by default
We do not publish a customer's name, product, drawing or project details without written permission. That is not a lack of proof - it is how contract manufacturing works, and it is the same discretion we apply to your designs.
